Components and Components Location: Components

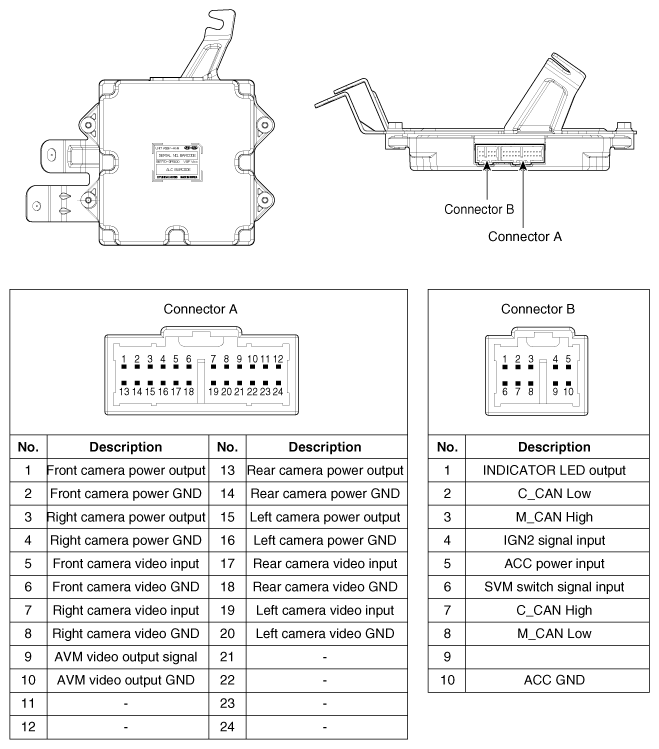

Fig 1: Surround View Monitoring Unit Connector Terminals
G11786293Courtesy of KIA MOTORS AMERICA, INC.
