FOB Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IGN ON, select the "FOB KEY STATUS INFO".

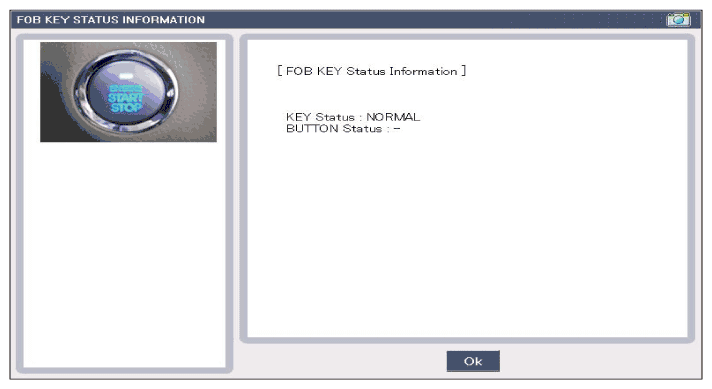

Fig 1: GDS Display Screen - FOB Key Status Information (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: GDS Display Screen - FOB Key Status Information (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
