Components and Components Location: Components

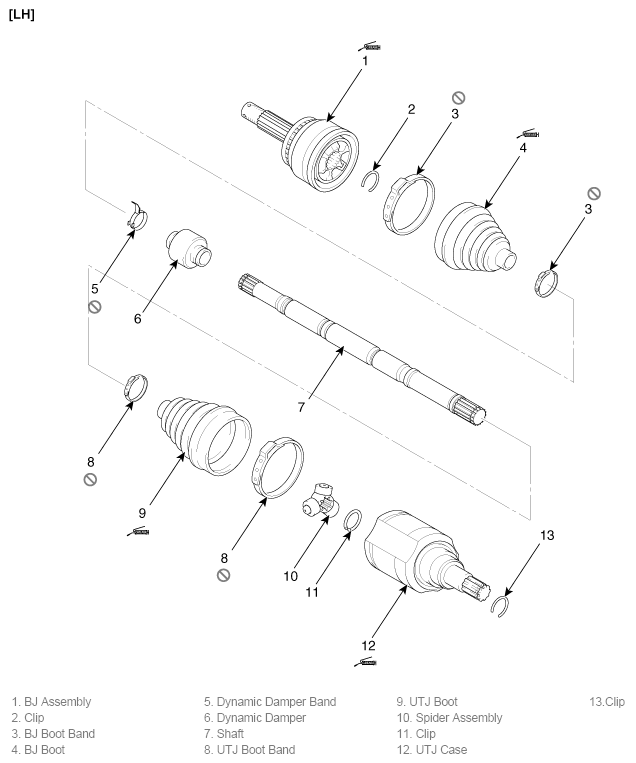

Fig 1: Exploded View Of Front Driveshaft (LH)
G11784461Courtesy of KIA MOTORS AMERICA, INC.

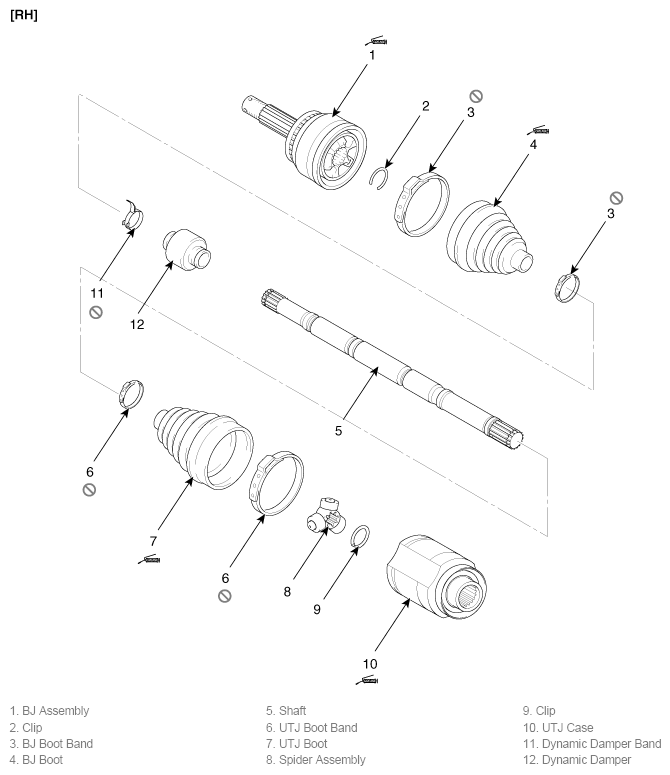

Fig 2: Exploded View Of Front Driveshaft (RH)
G11784462Courtesy of KIA MOTORS AMERICA, INC.
