Components and Components Location: Components

Fig 1: Timing System Components With Torque Specification (1 Of 2)
G11783432Courtesy of KIA MOTORS AMERICA, INC.

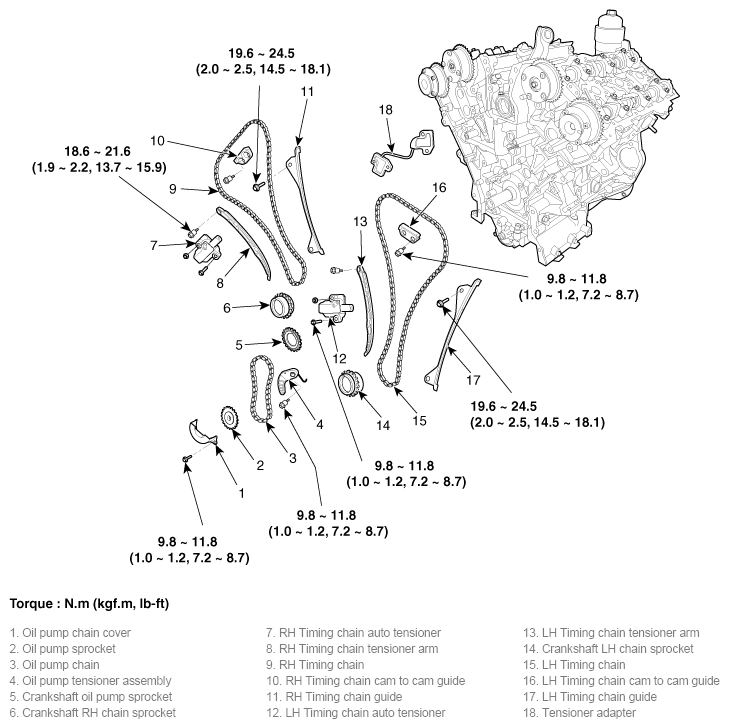

Fig 2: Timing System Components With Torque Specification (2 Of 2)
G11783433Courtesy of KIA MOTORS AMERICA, INC.
