Components and Components Location: Components

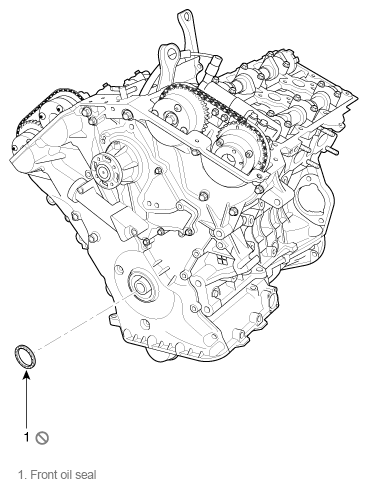

Fig 1: Front Oil Seal Components Location

G11783448

Courtesy of KIA MOTORS AMERICA, INC.
