Circuit Diagram

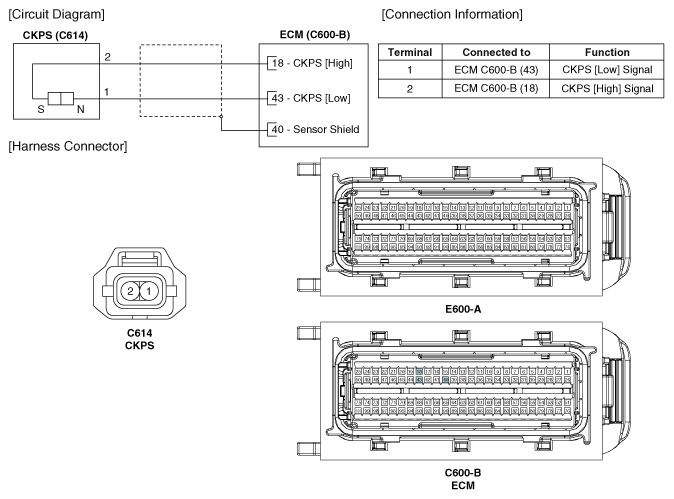

Fig 1: Crankshaft Position Sensor Circuit Diagram
G11784040Courtesy of KIA MOTORS AMERICA, INC.
