Components Location
>>
Notes
October 30: LEMON manuals on a temporary server, it is slow and having issues, download the manuals you need! Later in November we will switch back to the fast server.
Components Location: Notes

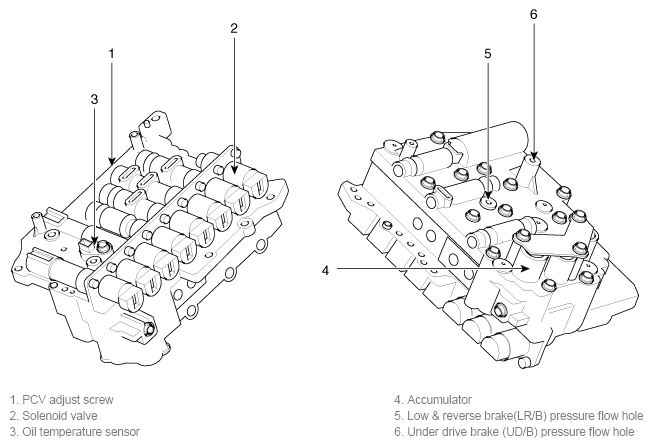

Fig 1: Valve Body Components Location
Courtesy of KIA MOTORS AMERICA, INC.
