Transmitter Code Registration (Using GDS)

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    Fig 1: Locate Data Link Connector In Driver Side Crash Pad Lower Panel
    G11792166Courtesy of KIA MOTORS AMERICA, INC.
  2. Select the vehicle model and then do "CODE SAVING"

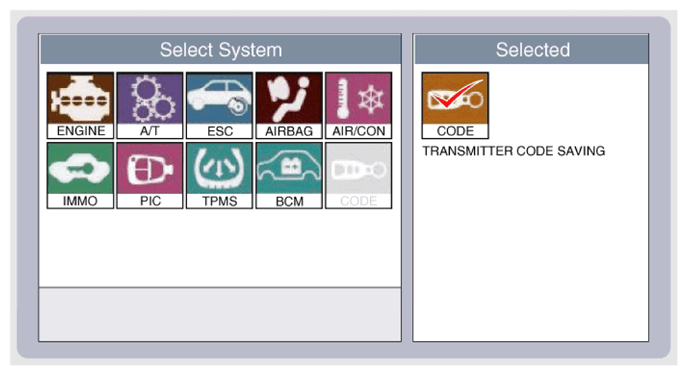

    Fig 2: Screen Display - Vehicle Model And Code Saving
    G11792167Courtesy of KIA MOTORS AMERICA, INC.
  3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as shown below.

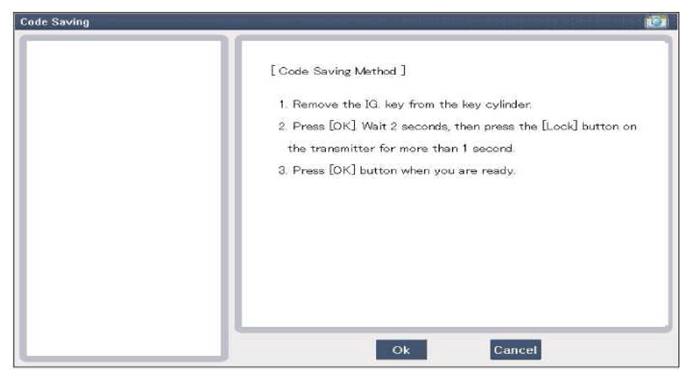

    Fig 3: Screen Display - Code Saving Menu
    G11792168Courtesy of KIA MOTORS AMERICA, INC.
  4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.
Fig 4: Screen Display - Code Saving (1 Of 9)
G11792169Courtesy of KIA MOTORS AMERICA, INC.

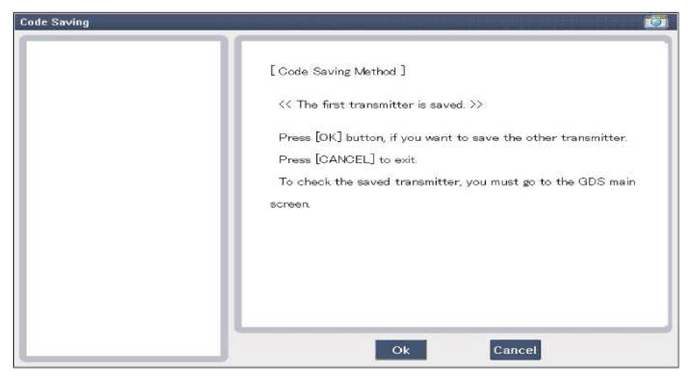

Fig 5: Screen Display - Code Saving (2 Of 9)
G11792170Courtesy of KIA MOTORS AMERICA, INC.

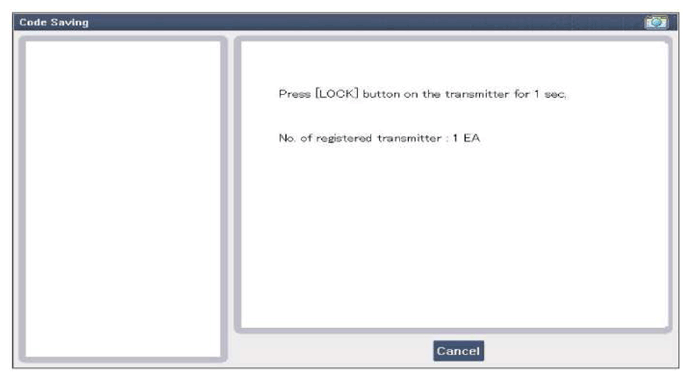

Fig 6: Screen Display - Code Saving (3 Of 9)
G11792171Courtesy of KIA MOTORS AMERICA, INC.
Fig 7: Screen Display - Code Saving (4 Of 9)
G11792172Courtesy of KIA MOTORS AMERICA, INC.
Fig 8: Screen Display - Code Saving (5 Of 9)
G11792173Courtesy of KIA MOTORS AMERICA, INC.

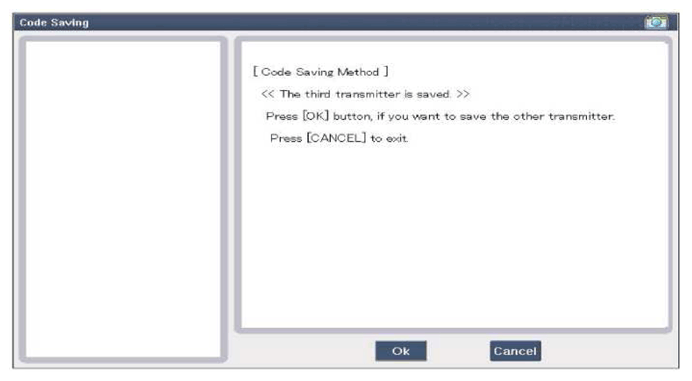

Fig 9: Screen Display - Code Saving (6 Of 9)
G11792174Courtesy of KIA MOTORS AMERICA, INC.
Fig 10: Screen Display - Code Saving (7 Of 9)
G11792175Courtesy of KIA MOTORS AMERICA, INC.
Fig 11: Screen Display - Code Saving (8 Of 9)
G11792176Courtesy of KIA MOTORS AMERICA, INC.

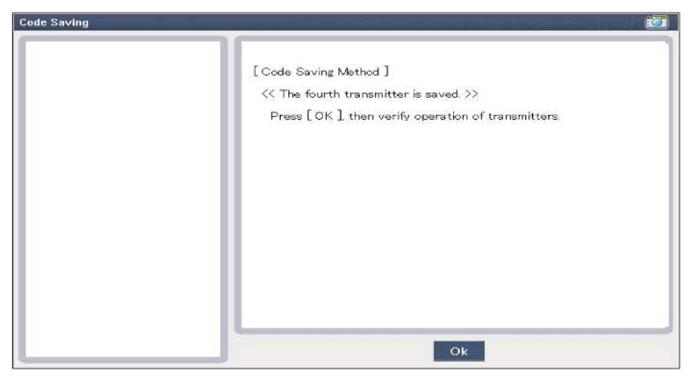

Fig 12: Screen Display - Code Saving (9 Of 9)
G11792177Courtesy of KIA MOTORS AMERICA, INC.
