Components And Components Location: Component

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

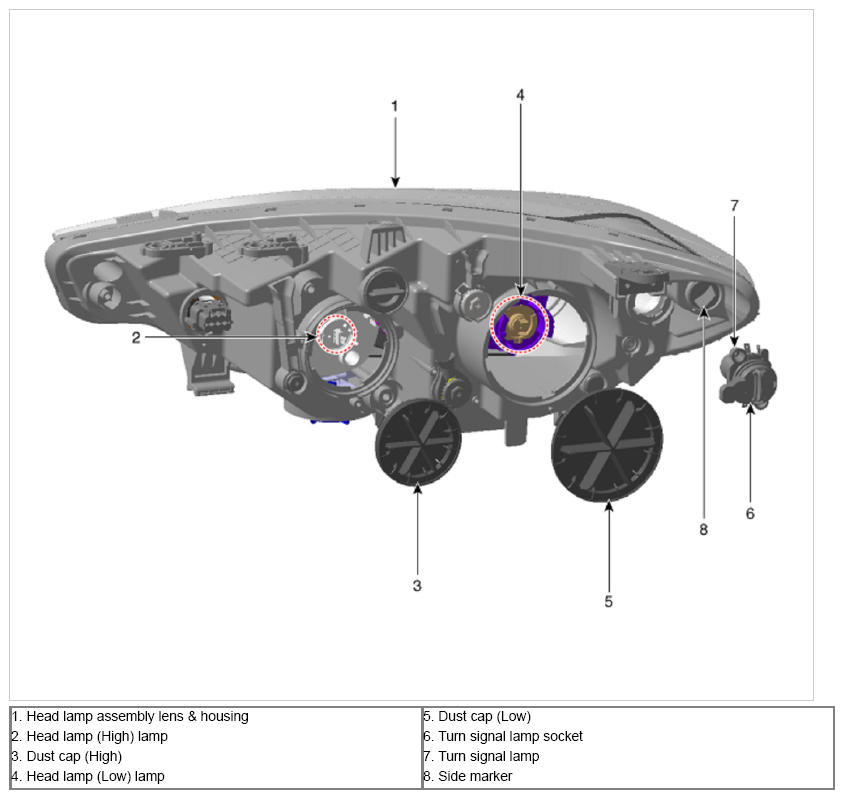

Fig 1: Head Lamp Components

Courtesy of KIA MOTORS AMERICA, INC.

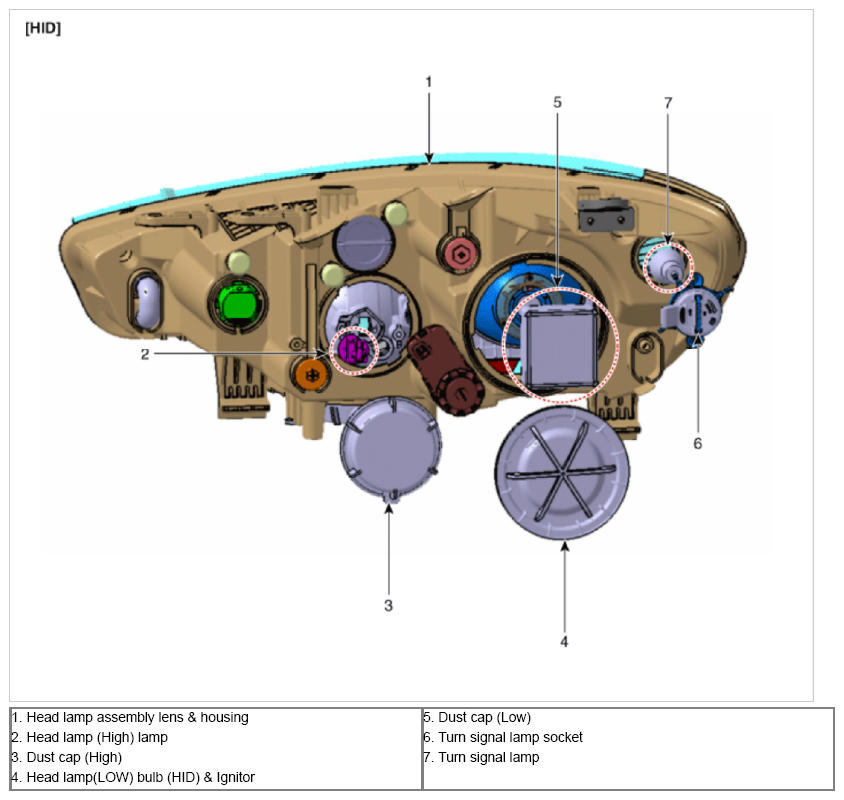

Fig 2: HID Head Lamp Components

Courtesy of KIA MOTORS AMERICA, INC.
