Repair Procedures: Inspection
WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

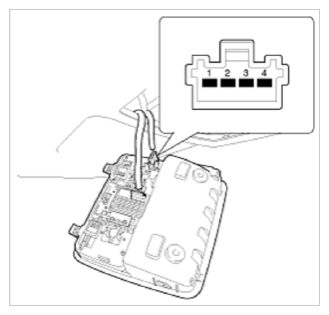

- Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
Courtesy of KIA MOTORS AMERICA, INC.
| No. |
Description |
| 1 |
Ground (-) |
| 2 |
Door (-) |
| 3 |
Room (+) |
| 4 |
Battery (+) |
Courtesy of KIA MOTORS AMERICA, INC.
