Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Loosen 2 screws holding the overhead console (A).

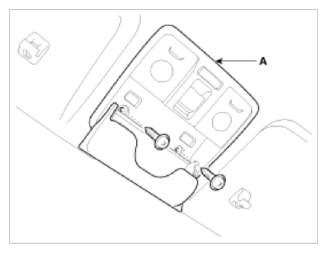

Fig 1: Overhead Console
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A) of sunroof switch and lamp switch then remove the overhead console lamp assembly.

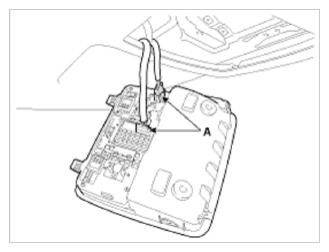

Fig 2: Overhead Console Lamp Assembly Connector
Courtesy of KIA MOTORS AMERICA, INC.
If necessary to replace the bulb, replace the bulb after disconnecting the connectors.
