Repair Procedures: Inspection

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

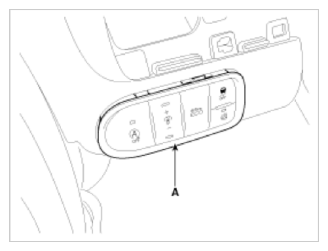

Remove the crash pad side switch assembly (A).

Fig 1: Crash Pad Side Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

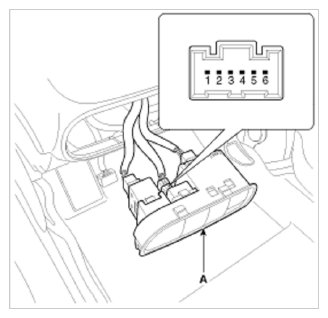

Disconnect the head lamp leveling switch connectors (A) from lower crash pad switch.

Fig 2: Head Lamp Leveling Switch Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Operate the rheostat switch and check for continuity between terminals.

Fig 3: Rheostat Switch Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
