Repair Procedures: Removal

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ASSEMBLY ")
Disconnect the connectors (A) from the floor console assembly.

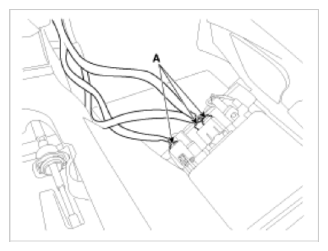

Fig 1: Floor Console Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the multimedia bracket (A) after loosening the mounting screws (2EA).

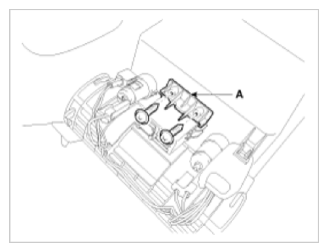

Fig 2: Multimedia Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the multimedia jack (A) after pushing the multimedia jack in the direction of the arrow.

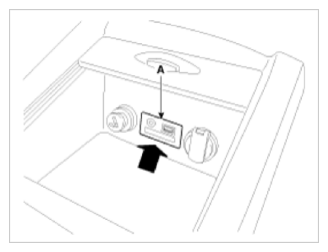

Fig 3: Pushing Multimedia Jack
Courtesy of KIA MOTORS AMERICA, INC.
