Repair Procedures: Inspection

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
NOTE: Before filling the reservoir tank with water, check the filter for foreign material or contamination. if necessary, clean the filter.
Connect positive (+) battery cables to terminal 2 and negative (-) battery cables to terminal 1 respectively.
Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles.
If they are abnormal, replace the washer motor.

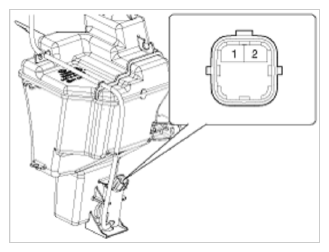

Fig 1: Washer Motor Connector Terminal
Courtesy of KIA MOTORS AMERICA, INC.

NO	Description
1	Washer (+)
2	GND (-)

Fig 2: Washer Motor Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.
