Repair Procedures: Replacement

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Recover the refrigerant with a recovery/charging station.
Disconnect the A/C pressure transducer connector (A).

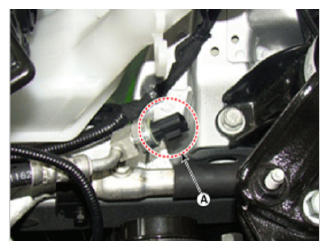

Fig 1: A/C Pressure Transducer Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the A/C pressure transducer (A).
Tightening Torque:

10.0 ~ 12.0 N.m (1.02~ 1.22 kgf.m, 7.4~8.8 lb-ft)

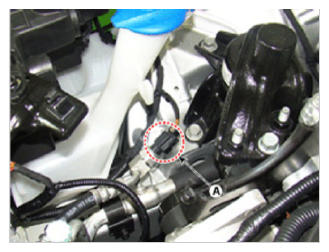

Fig 2: A/C Pressure Transducer
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Be careful not to bend the liquid & suction pipe.
Install in the reverse order of removal.
NOTE: When installing, replace it with a new O-ring (A).

Fig 3: O-Ring
Courtesy of KIA MOTORS AMERICA, INC.
