Repair Procedures: Replacement
WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

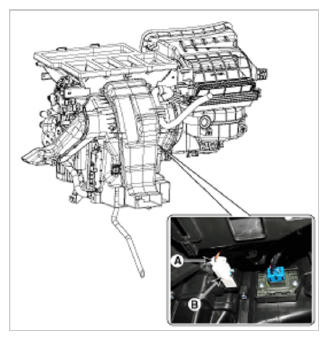

- Disconnect the evaporator temperature sensor connector (A).
- Remove the evaporator temperature sensor (B) by pulling it out after rotating it 90° in a counterclockwise direction.
- Install in the reverse order of removal.
