Repair Procedures: Installation

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

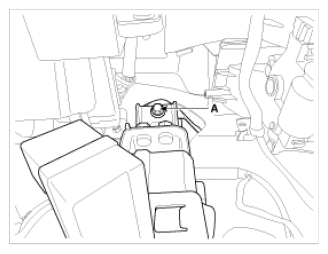

Pre-tighten the bracket fixing bolt (A) in dash panel.

Fig 1: Bracket Fixing Bolt
Courtesy of KIA MOTORS AMERICA, INC.

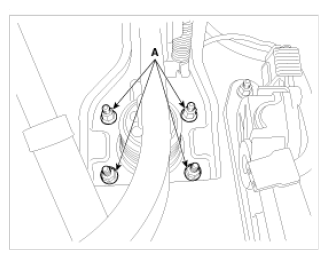

Install the brake booster and brake pedal member fixing nuts (A) securely.
Tightening Torque:

16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)

Fig 2: Brake Pedal Member Fixing Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Tighten the bolt (A) securely in dash panel.
Tightening Torque:

18.6 ~ 23.5 N.m (1.9 ~ 2.4 kgf.m, 13.7 ~ 17.4 lb-ft)

Fig 3: Dash Panel Bolt
Courtesy of KIA MOTORS AMERICA, INC.

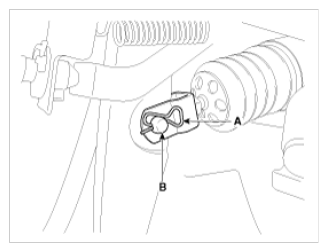

Install the snap pin (A) and clevis pin (B).

Fig 4: Snap Pin & Clevis Pin
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- Before installing the pin, apply the grease to the clevis pin.
- Use a new snap pin whenever installing.
Install the stop lamp switch securely.

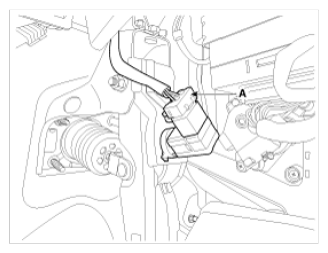

Connect the stop lamp switch connector (A).

Fig 5: Stop Lamp Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Adjust the brake pedal height and free play.
Check the brake pedal operation after installing the brake pedal.

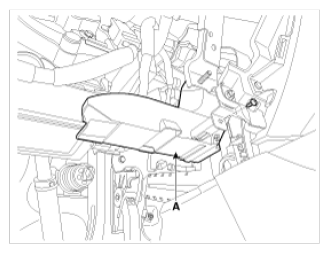

Install the shower duct (A).

Fig 6: Shower Duct
Courtesy of KIA MOTORS AMERICA, INC.
Install the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
Reconnect the battery negative cable.
