Trunk Antenna

WARNING: This page is about a different car, the 2015 Kia Forte5, 2015 Kia Forte Koup, and 2015 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Using a clip remover, detach the clips, and remove the rear transverse trim (A).

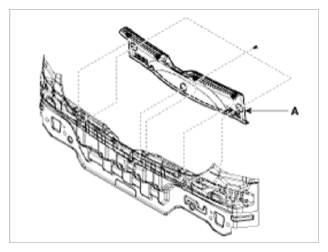

Fig 1: Rear Transverse Trim
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector, then remove the trunk antenna (A) with loosening 2 nuts.

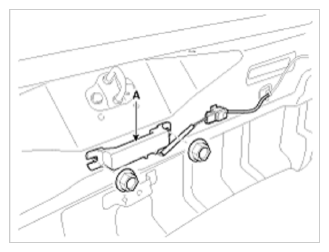

Fig 2: Trunk Antenna And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
