Components And Components Location: Components
[NON-ISG Type]

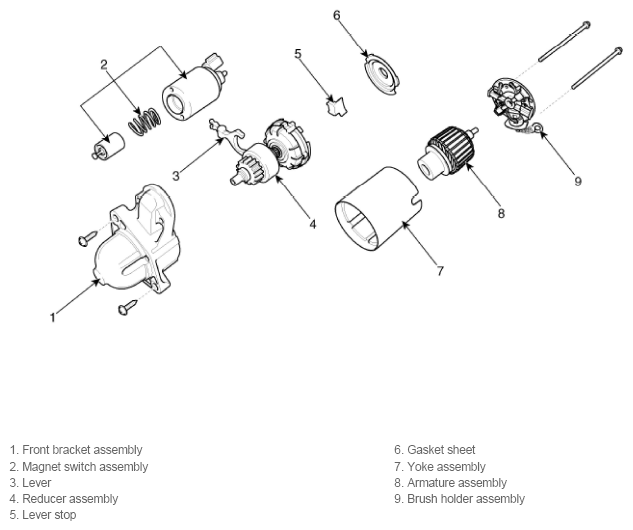

Fig 1: Exploded View Of Starter
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
