Engine Control System Diagnosis - 1.6L (3 Of 3)
>>
DTC P0620: Alternator Control Circuit
>>
Component Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Location

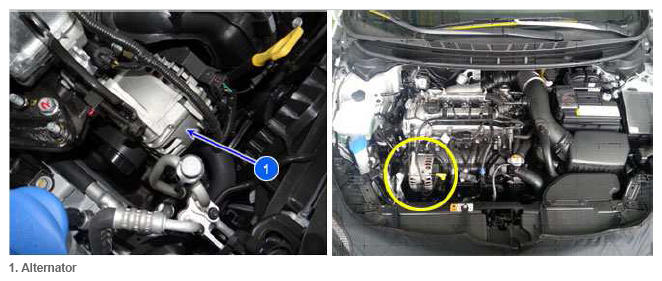

Fig 1: Alternator Component Location
Courtesy of KIA MOTORS AMERICA, INC.
