Monitor DTC Status

Connect GDS to DLC (Data Link Cable).
IG "ON".
Select "Diagnostic Trouble Codes (DTC) " Analysis and press "DTC Status".

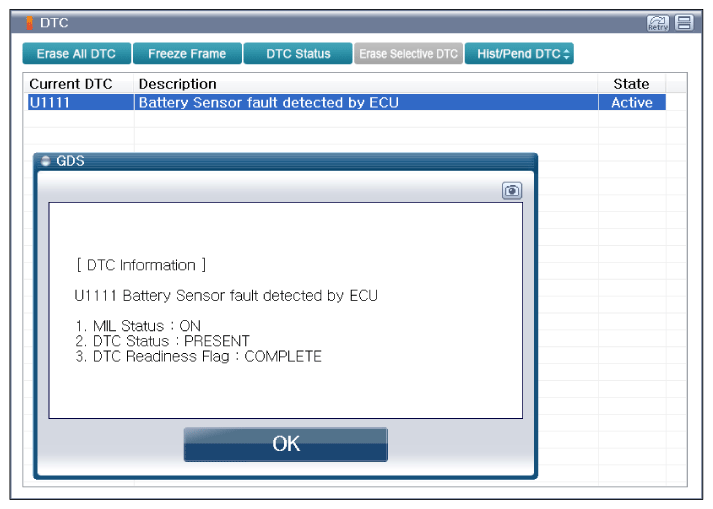

Fig 1: Display - Battery Sensor Fault Detection ECU Screen
Courtesy of KIA MOTORS AMERICA, INC.
Is the parameter displayed "Present"?
YES
- Go to "MONITOR GDS DATA ".
NO
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Vehicle Repair " procedure.
