Repair Procedures: Removal

  1. Remove the bumper.

    (Refer to Body - "FRONT BUMPER COVER ")

  2. Disconnect the ASCC radar connector (A).
  3. Remove the ASCC radar (B) after loosening the mounting nut.

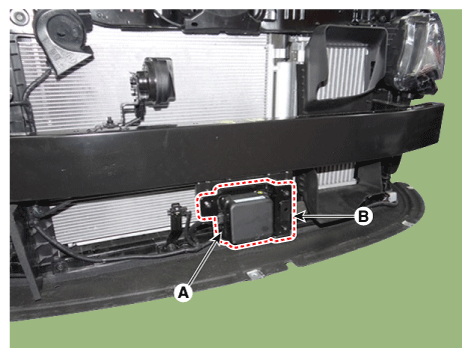

Fig 1: Locating ASCC Radar And Connector
G11823165Courtesy of KIA MOTORS AMERICA, INC.

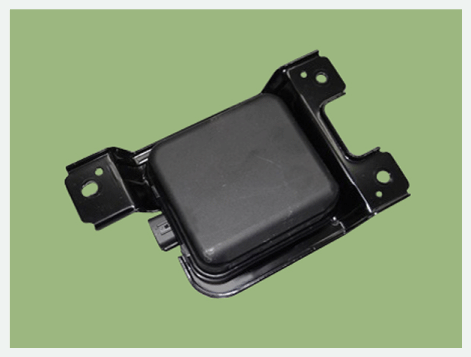

Fig 2: Locating ASCC Radar
G11823166Courtesy of KIA MOTORS AMERICA, INC.
