Signal Waveform & Data

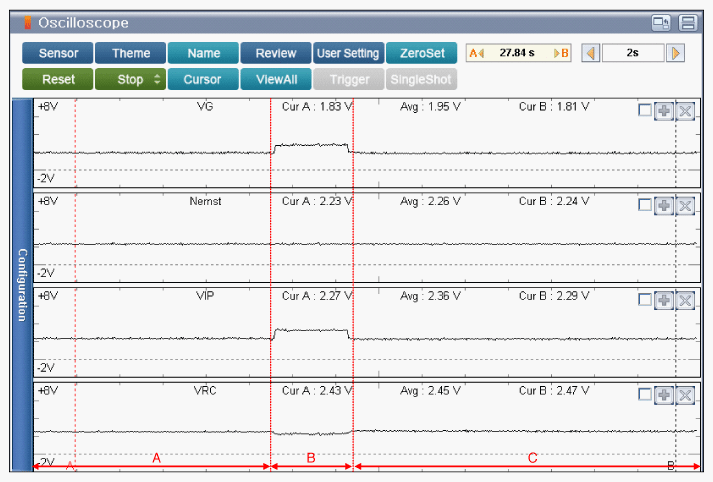

Fig 1: Scantool Display - Oscilloscope Review (Associated HO2S (S1) Voltage)
G11821524Courtesy of KIA MOTORS AMERICA, INC.
  1. Section: EV READY Drive
    • VG: 1.83 V
    • Nernst: 2.23 V
    • VIP: 2.27 V
    • VRC: 2.42 V
  2. Section: Engine Drive
    • VG: 2.73 V
    • Nernst: 2.26 V
    • VIP: 3.15 V
    • VRC: 2.20 V
