Signal Waveform & Data

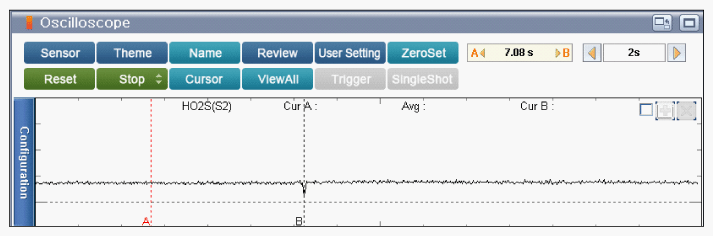

Fig 1: Scantool Display - Oscilloscope Review (HO2S (S2) Voltage)
G11821544Courtesy of KIA MOTORS AMERICA, INC.
  1. Cursor: 0.76V (Idling)
  2. Cursor: 0.25V (Accelerating)
