Monitor DTC Status

  1. Connect GDS to Data Link Connector(DLC).
  2. Ignition "ON"
  3. Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

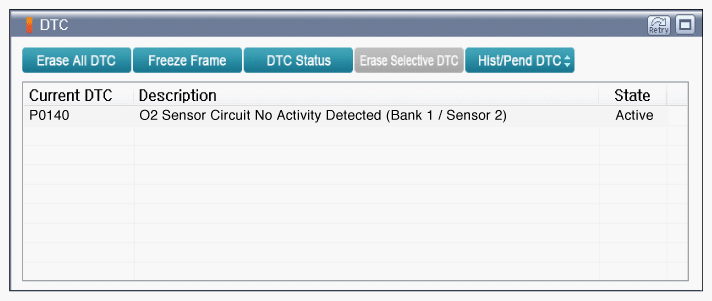

    Fig 1: Scantool Display - Diagnostic Trouble Code P0140
    G11821549Courtesy of KIA MOTORS AMERICA, INC.
  4. Is DTC status displayed as Present?

    YES

    • Go to Monitor GDS Data procedure below.

    NO
