Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L - Optima (Except HEV)
>>
Barometric Pressure Sensor (BPS)
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

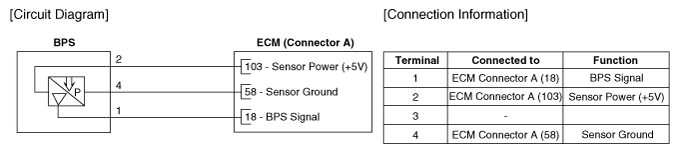

Circuit Diagram
Fig 1: Boost Pressure Sensor Circuit
Courtesy of KIA MOTORS AMERICA, INC.
