Components And Components Location: Components

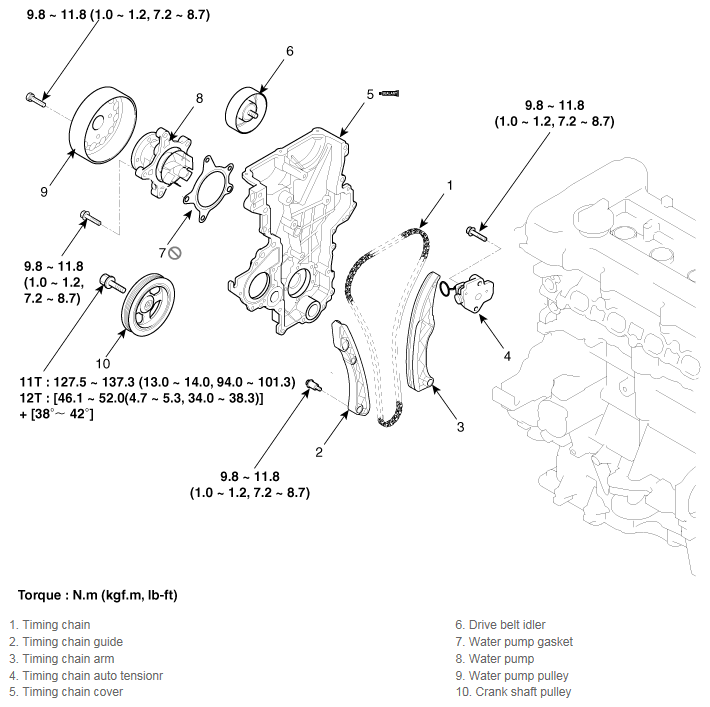

Fig 1: Timing Chain Components With Torque Specifications
G11844589Courtesy of KIA MOTORS AMERICA, INC.
