Components And Components Location: Components

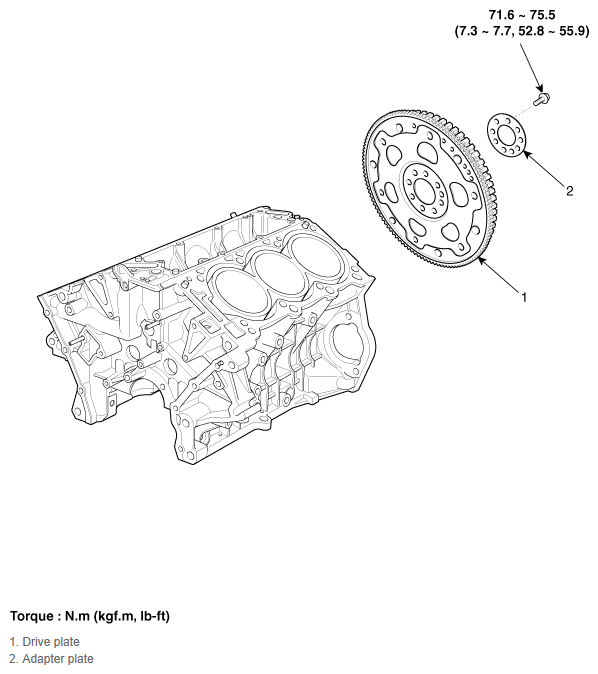

Fig 1: Locating Drive Plate And Adapter Plate Components With Torque Specification
G11856031Courtesy of KIA MOTORS AMERICA, INC.
