Schematic Diagrams

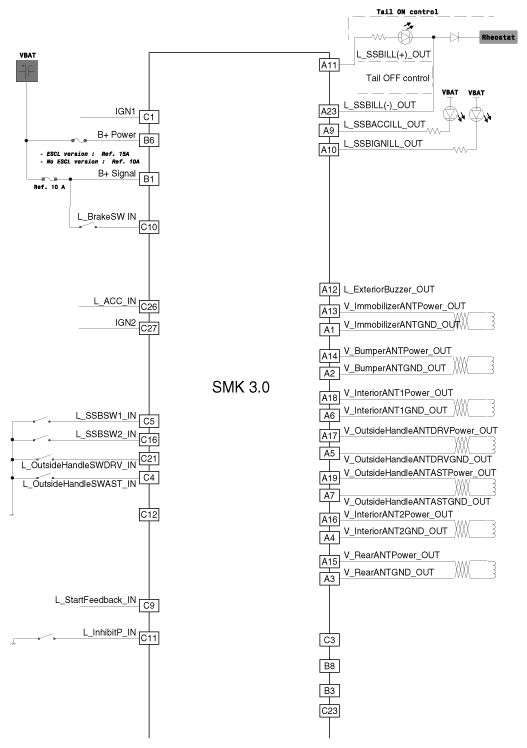

Fig 1: Smart Key Unit Schematic Diagrams (1 Of 2)
G11863218Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Smart Key Unit Schematic Diagrams (2 Of 2)
G11863219Courtesy of KIA MOTORS AMERICA, INC.
