Components and Components Location: Components

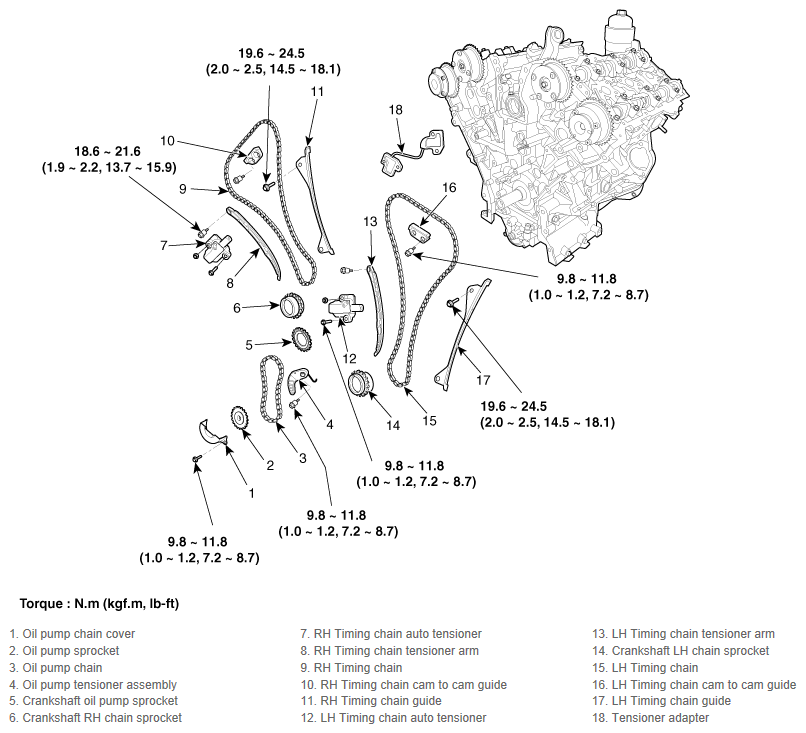

Fig 1: Location Timing Chain Components With Torque Specifications
G11856350Courtesy of KIA MOTORS AMERICA, INC.
