Components Location

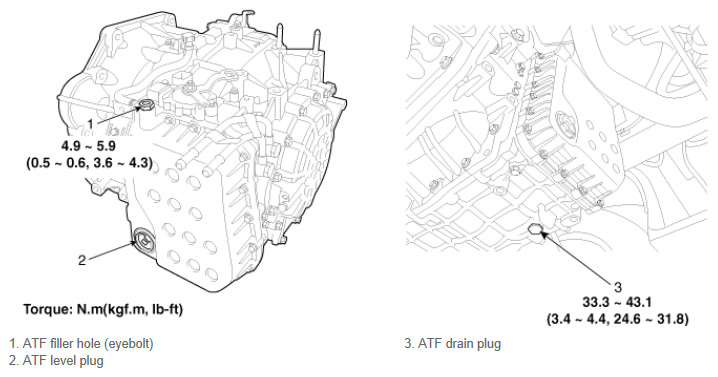

Fig 1: Locating Fluid Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
