Components And Components Location: Components

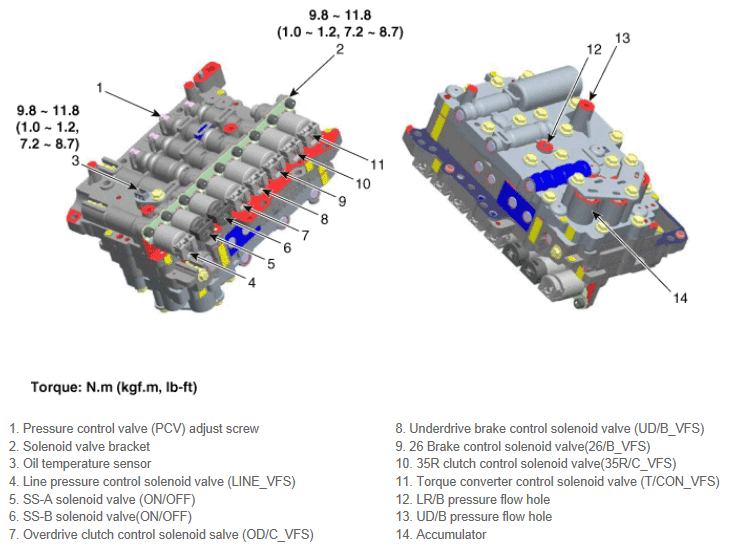

Fig 1: Locating Valve Body Components With Torque Specification
G11856997Courtesy of KIA MOTORS AMERICA, INC.
