System Inspection

■ Visual Check

1. Check Camshaft and Crankshaft Alignment.

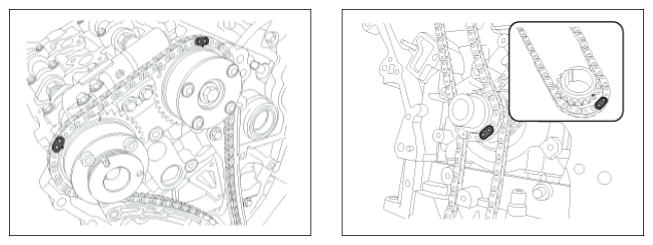

   Fig 1: Checking Timing Position Of Camshafts And Crankshaft (Bank 1)

   Courtesy of KIA MOTORS AMERICA, INC.

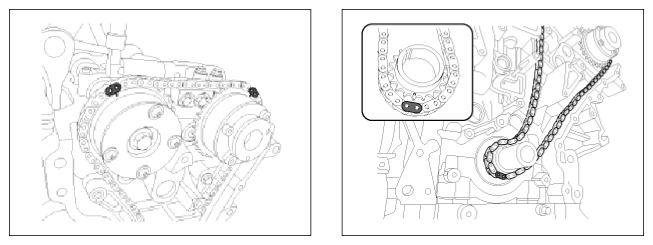

   Fig 2: Checking Timing Position Of Camshafts And Crankshaft (Bank 2)

   Courtesy of KIA MOTORS AMERICA, INC.
2. Have any problems been found?

   YES

   • Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Carefully redo this troubleshooting guide steps.
   • If no problems were found with the circuits or connectors, replace the PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
