Components And Components Location: Components

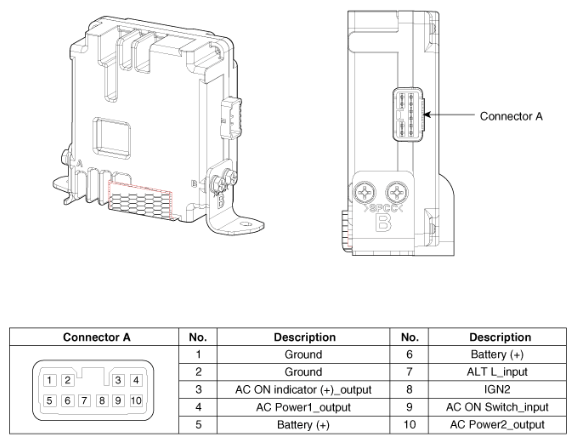

Fig 1: AC Inverter Unit Components

G11867585

Courtesy of KIA MOTORS AMERICA, INC.
