Description And Operation: Description: Notes

An inverter is a device that transforms the DC voltage from the battery into an AC voltage (115V). The inverter can power various electrical devices that consume 150W or less, including mobile phone or notebook recharges, audio systems, and TVs.

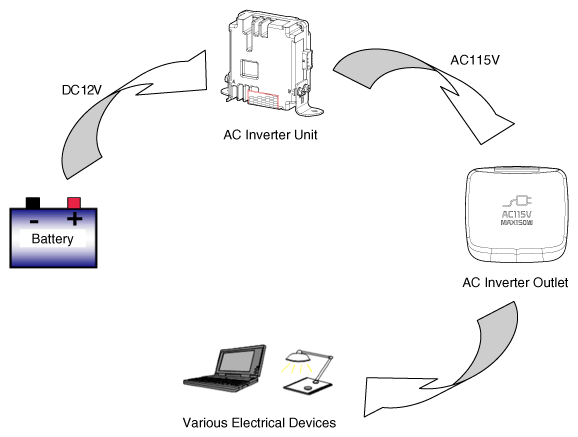

Fig 1: AC Inverter System Operation Diagram

Courtesy of KIA MOTORS AMERICA, INC.
