Monitor GDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Ignition switch "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition switch "ON" & Engine "ON"
  4. Monitor "Pressure sensor" parameter in "Current Data  " with GDS.

    Specification:  Refer to Fig 1 below

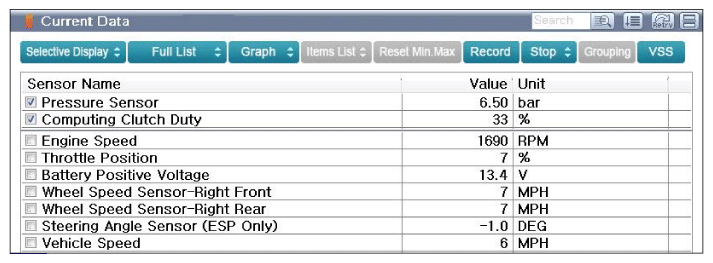

    Fig 1: Display - 4WD System Pressure Sensor And Clutch Duty Parameters Screen
    G11874688Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "Verification Of Vehicle Repair " procedure.

    NO
