Repair Procedure: Inspection
WARNING: This page is about a different variant/trim than selected.
- Connect the GDS on the Data Link Connector (DLC).

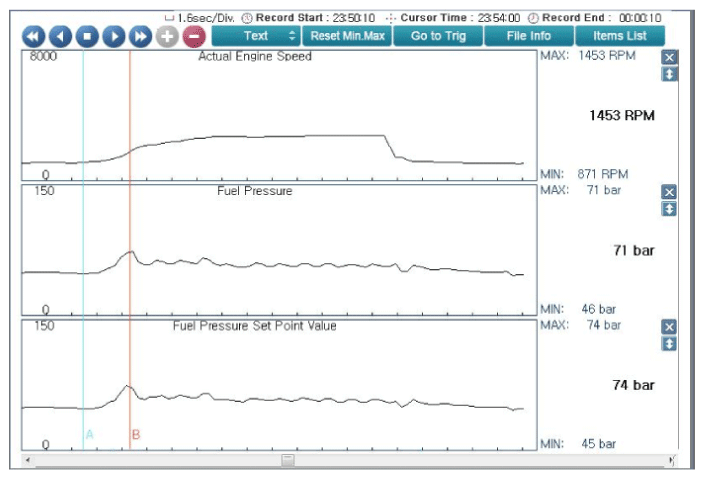

- Measure the output voltage and fuel pressure of the RPS at idle and various engine speed.
| Pressure |
Output Voltage (V) [Vref=5V] |
| bar |
[MPa (kgf/cm2
, psi)] |
| 0 |
0 |
(0, 0) 0.5 |
| 140 |
14 |
(142, 2031) 2.5 |
| 280 |
28 |
(286, 4061) 4.5 |
Courtesy of KIA MOTORS AMERICA, INC.
