Components And Components Location: Components

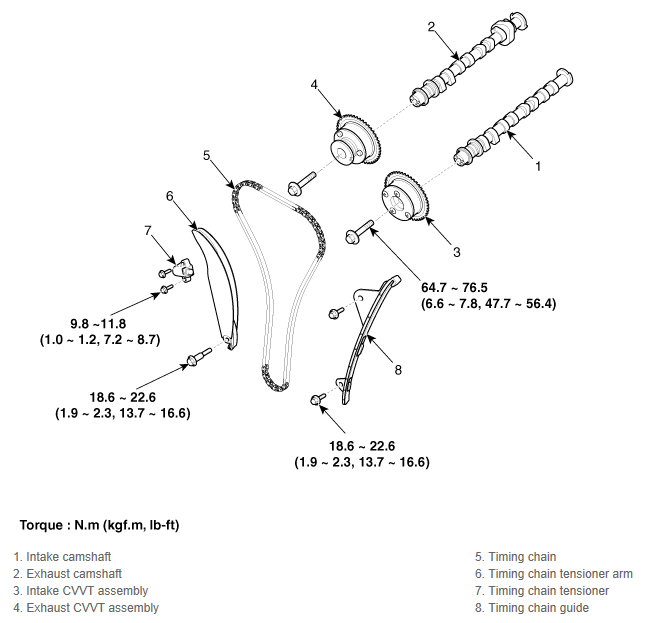

Fig 1: Timing Chain Exploded View With Torque Specifications
G11954698Courtesy of KIA MOTORS AMERICA, INC.
