Monitor KDS/GDS Data
- Connect KDS/GDS to DLC (Data Link Cable).
- Warm up the engine to normal operating temperature.

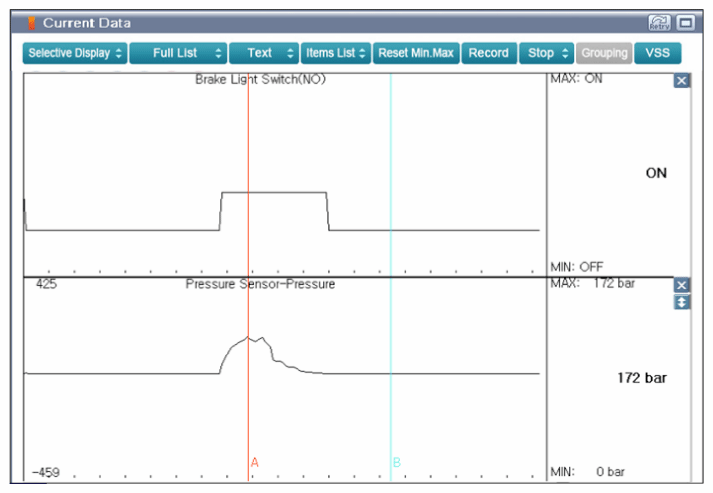

- Check the "Current Data " with KDS/GDS.
- Are the parameters displayed normally?
YES
- The system is operating correctly at this time. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
