Soul Base, Automatic Trans
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Smart Junction Block Diagnosis
>>
DTC B1602: CAN Error
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

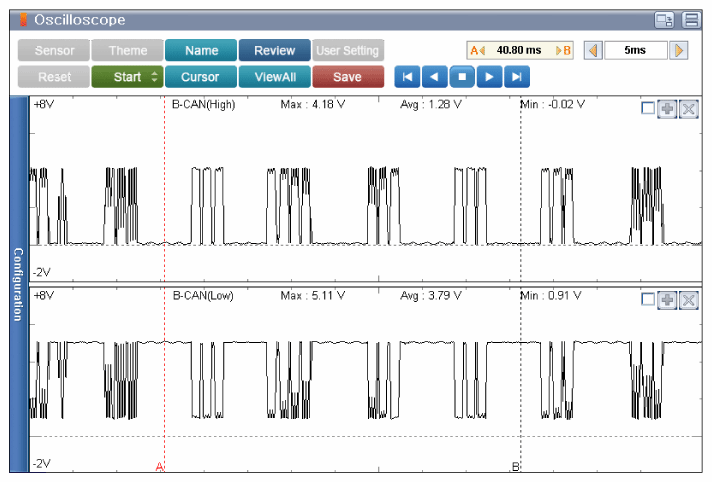

Fig 1: Scantool Display - B-CAN Low/High Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
