Monitor GDS status

Connect GDS to Data Link Connector (DLC).
Ignition "ON" (Power Button LED "Red")
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.

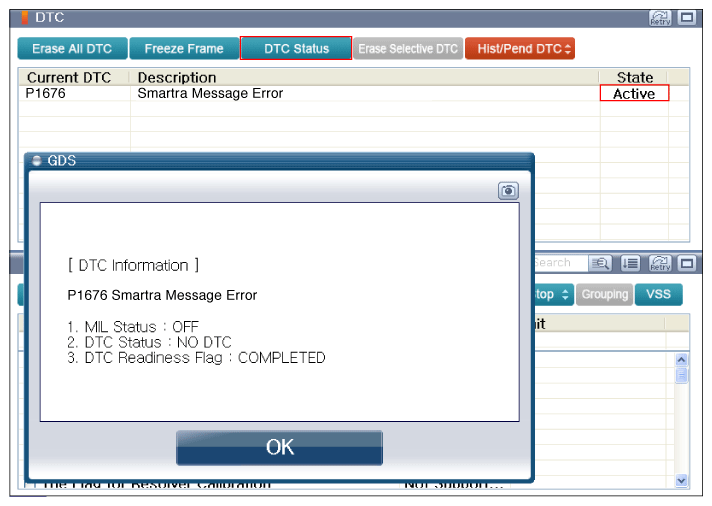

Fig 1: Scantool Display - Diagnostic Trouble Code (DTC)
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "MONITOR GDS DATA " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
