Integrated Gateway Power Control Module Diagnosis
>>
DTC C1628-00: CAN Time-Out Cluster
>>
Specification
>>
Signal Waveform & Data
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Signal Waveform & Data

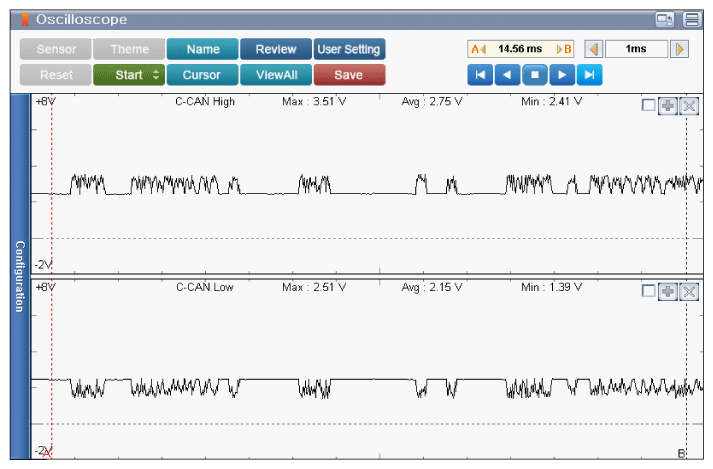

Fig 1: Scantool Display - Normal C-CAN Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
