[Trip + ASCC]

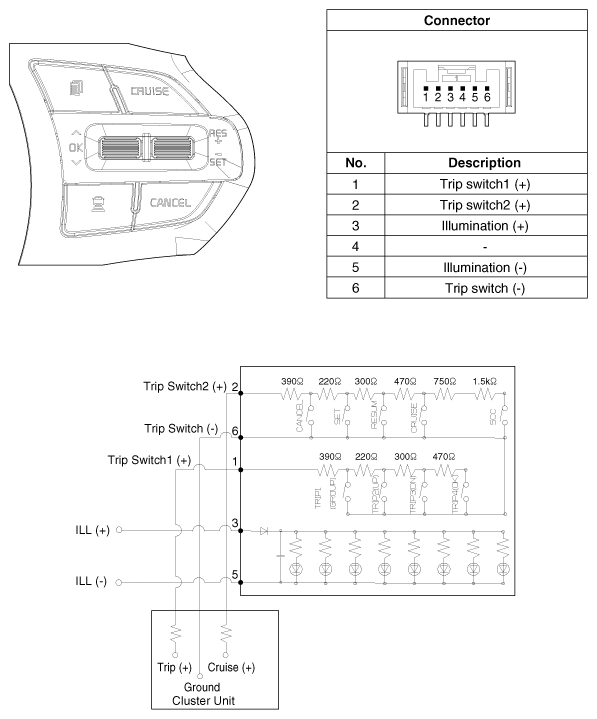

Fig 1: Advanced Smart Cruise Control (ASCC) Switch Circuit Diagram And Connector End View (Trip + ASCC)
G12290532Courtesy of KIA MOTORS AMERICA, INC.
