Monitor KDS/GDS Data

  1. Ignition "OFF".
  2. Connect KDS/GDS to Data Link Connector (DLC).
  3. Ignition "ON" & Engine "ON".
  4. Turn "ON" the MFC/LKAS/LDWS switch.
  5. Monitor "Switch Status" parameter in "Current Data" with KDS/GDS.

    Specification  : Switch "ON" - "ON", Switch "OFF" - "OFF"

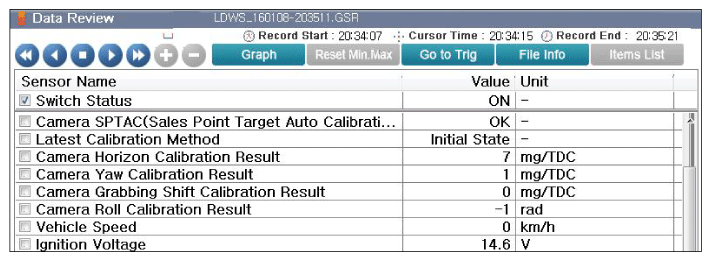

    Fig 1: Scantool Display - Current Data Of MFC/LKAS/LDWS Switch On MFC/LKAS/LDWS Switch Activated
    G12280474Courtesy of KIA MOTORS AMERICA, INC.
  6. Is the parameter displayed within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

    NO
