Switch Diagnosis
- Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel, and turn on the KDS/GDS.
- Select the vehicle model and then SMART KEY system.
- Select the "SMART KEY unit".

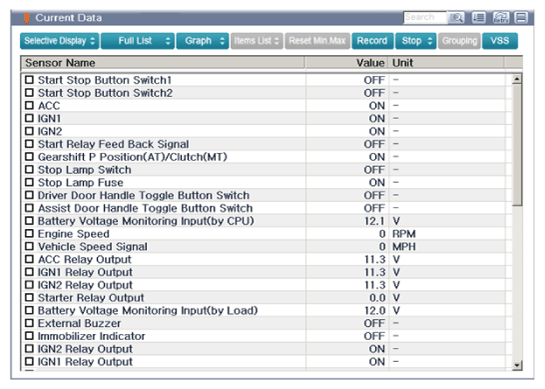

- After Ignition "ON", select the "Current data".
- Status of each switch is displayed on KDS/GDS after connecting the "current data" process.
| Display | Description |
|---|---|
| FL Toggle SW | ON: Push button is ON in the driver side door handle. |
| FR Toggle SW | ON: Push button is ON in the passenger side door handle. |
| Trunk open SW | ON: Trunk button is ON. |
| Gear P Position | ON: Shift lever is in "P". |
| IGN 1 | ON: Ignition switch is in "IG". |
| ACC | ON: Ignition switch is in "ACC". |
| Brake SW | ON: Brake switch is ON. |
