Repair Procedures: Removal

Remove the rear wheel & tire (A) from the rear hub.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

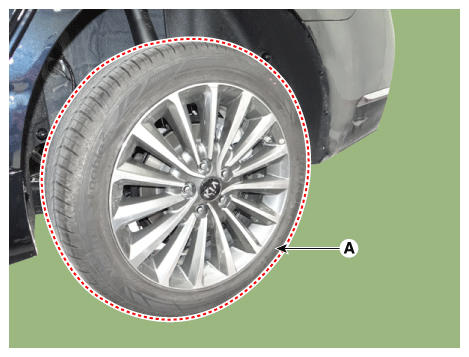

Fig 1: Locating Rear Wheel & Tire
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
Disconnect the rear wheel speed sensor connector (A).

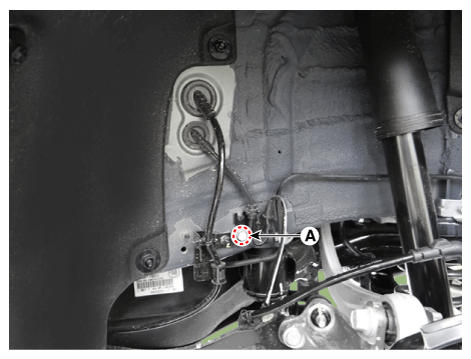

Fig 2: Locating Rear Wheel Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the rear speed wheel sensor cable.

Fig 3: Locating Rear Speed Wheel Sensor Cable
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the bolt (A) and then remove the rear wheel speed sensor cable bracket.

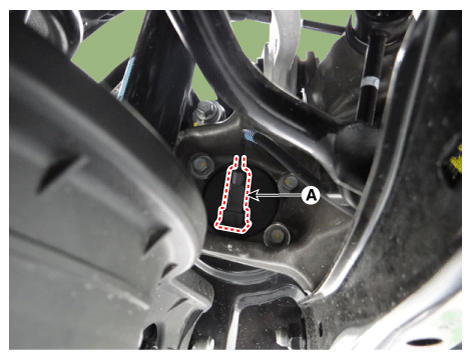

Fig 4: Locating Rear Wheel Speed Sensor Cable With Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear seat.
(Refer to body - "REAR SEAT ASSEMBLY ")
Remove the door scuff trim.
(Refer to body - "DOOR SCUFF TRIM ")
Disconnect the rear wheel speed sensor connector.
Install in the reverse order of removal.
