Components And Positions: Components

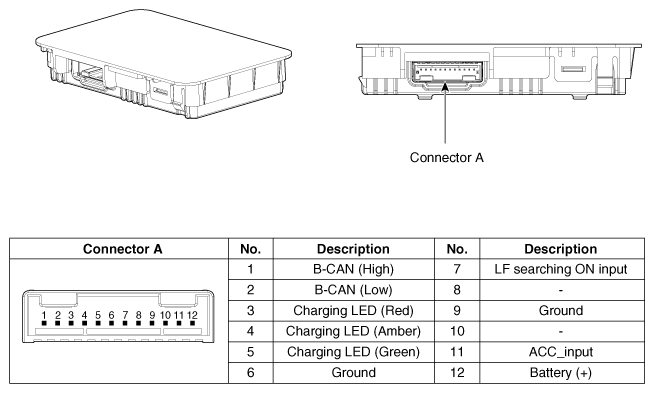

Fig 1: Wireless Power Charging Unit Components Location With Connector End View
G12288317Courtesy of KIA MOTORS AMERICA, INC.
