Components And Components Location: Component

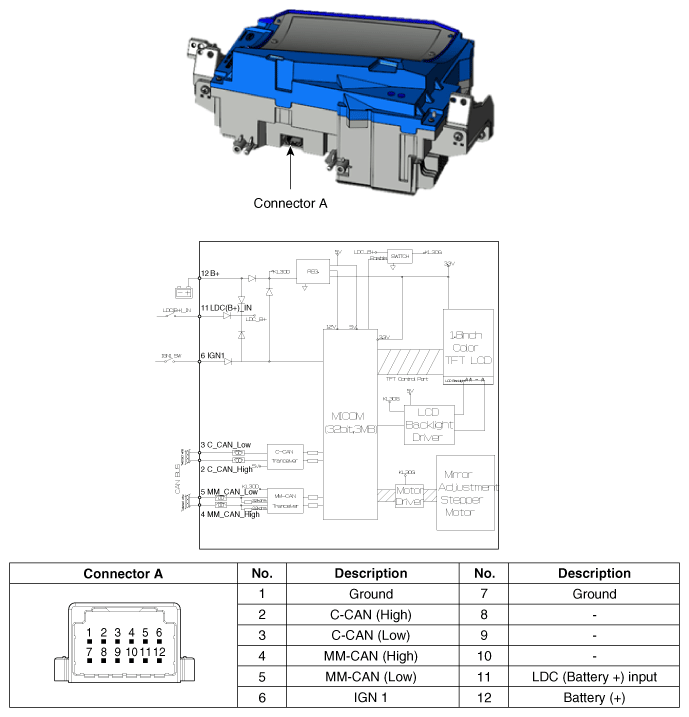

Fig 1: Head Up Display Unit Component With Circuit Diagram & Connector End View
G12298445Courtesy of KIA MOTORS AMERICA, INC.
