Repair Procedures: Inspection

If a part of the head up display footage is distorted or it is not at eye level with the driver a Global Diagnostic System (KDS/GDS) can be used to carry out calibration.

Calibration is required:
- After replacing the head-up display unit
- When the footage is distorted after replacing the windshield (double vision removal film built-in glass)
- When the HUD mounted main crash pad is removed/installed or replaced.
- When the image setting location of the HUD unit is not at eye level of the driver resulting in out of focus image.

Calibration items

No	Footage calibration functions	Calibration cases
1	Rotation: Calibrate in counterclockwise/clockwise direction at the center.
2	Smile: Calibrate vertically at the center.
3	Slanted (up/down): Calibrate along a vertical inclination.
4	Slanted (left/right): Calibrate along a horizontal inclination.
5	Parallel compensation
6	Up/down movement of indicated location: Calibrate to user eye level.
7	Initialization: Return to previous status before calibration.

Process of calibration
1. Locate the vehicle on a flat plane for accurate adjustment.
2. Make sure that there are no foreign materials on the windshield.
3. Connect the Global Diagnostic System to the vehicle, and select vehicle type and HUD system additional functions.
4. Under additional functions select "HUD calibration".

  Fig 1: Screen Display - Select HUD Calibration
  Courtesy of KIA MOTORS AMERICA, INC.
5. Before "calibration", carry out "HUD calibration - initialization".
  NOTE: "HUD calibration - initialization" must be performed prior to "calibration".

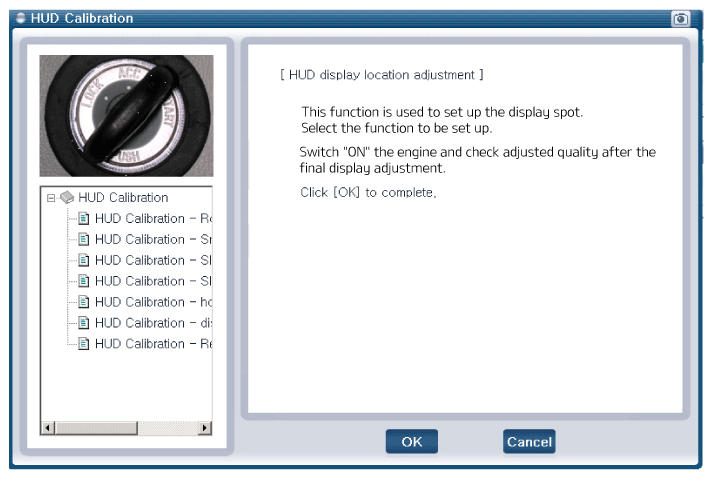

  Fig 2: Screen Display - Carry Out HUD Calibration
  Courtesy of KIA MOTORS AMERICA, INC.
6. Select the necessary calibration items and carry out "HUD calibration".

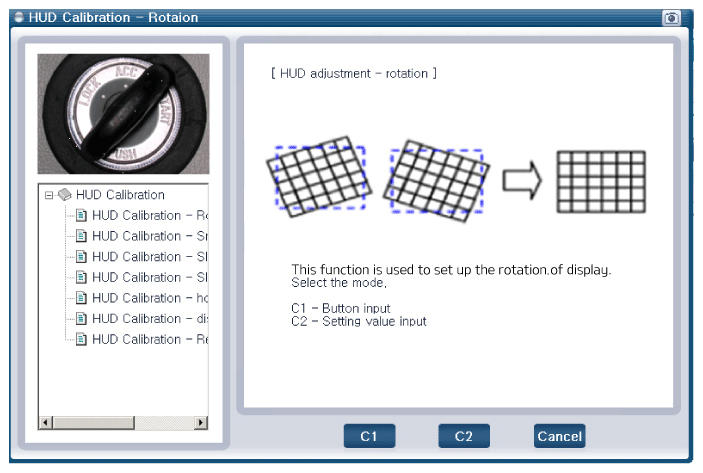

  Fig 3: Screen Display - Select Necessary Calibration Items
  Courtesy of KIA MOTORS AMERICA, INC.
7. When calibration is completed, start and cut off the engine and check that the footage calibration is completed.
