Removal And Installation

Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the air cleaner assembly.
(Refer to Intake And Exhaust System - "AIR CLEANER ")
Remove the surge tank.
(Refer to Intake And Exhaust System - "SURGE TANK ")
Remove the low pressure fuel line.
(Refer to Engine Control/Fuel System - "FUEL LINE ")
Remove the intake manifold (A).

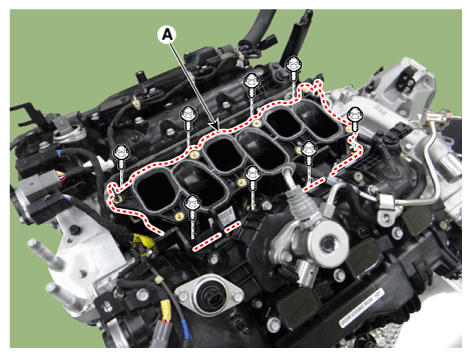

Fig 1: Locating Intake Manifold With Bolts
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Cover the cylinder head intake port with a clean woven stuff or vinyl cover to prevent foreign materials from entering.
- Otherwise, engine coolant may enter the intake port from the vent holes of the cylinder head causing problems in the engine combustion chambers.
Install in the reverse order of removal.
NOTE: Tighten the intake manifold bolts and nuts, in several passes as below.

Tightening torque

Step 1 (a-h): 3.9 - 5.9N.m (0.4 - 0.6kgf.m, 2.9 - 4.3lb.ft)

Step 2 (1-8): 26.5 - 31.4N.m (2.7-3.2kgf.m, 19.5-23.1lb.ft)

Step 3: Repeat 2nd step twice or more.

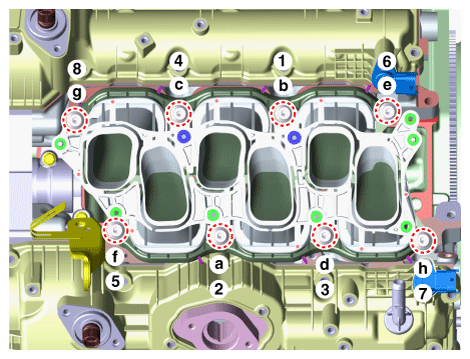

Fig 2: Intake Manifold Bolts & Nuts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
